CSS Flex

The CSS Flex is a way to create Flexible 1 Dimension layout of a web page.

For a smaller layout, it is better to use Flex & for a bigger Layout, it is better to use Grids.

Grids are used to create 2 Dimensional Web Layouts.

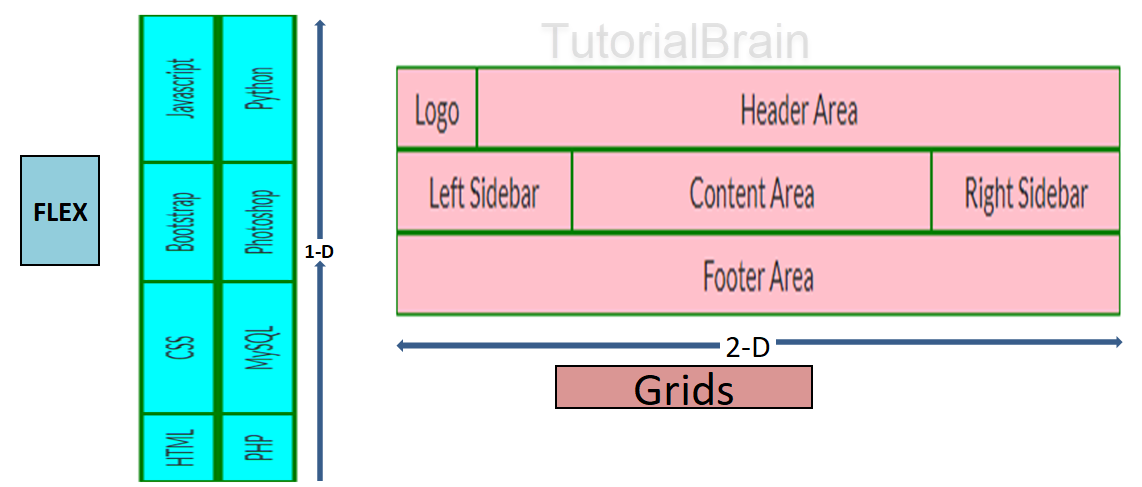

CSS Flex vs Grids

The Flex Container is the Parent & the Flex items are the Children(direct child of Flex) of the Flex container.

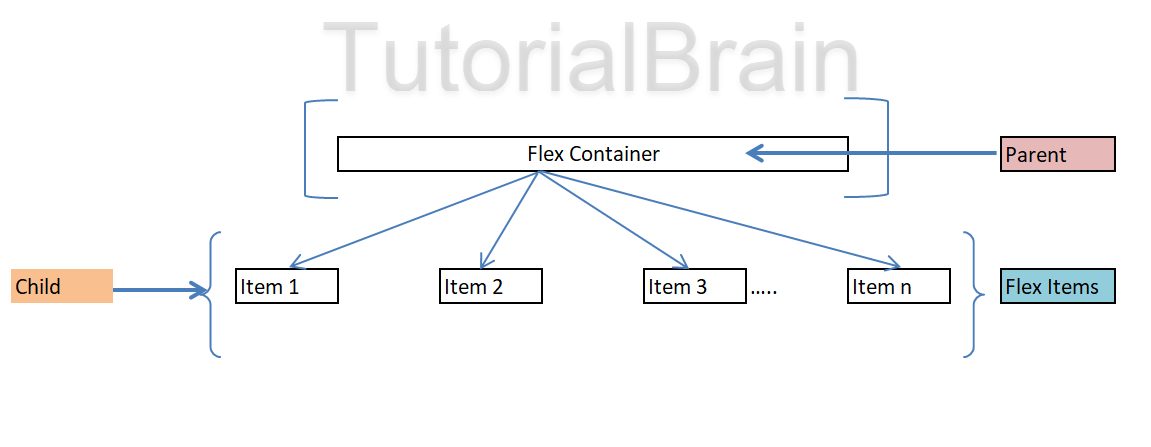

CSS Grid Container as Parent and Flex items as Child

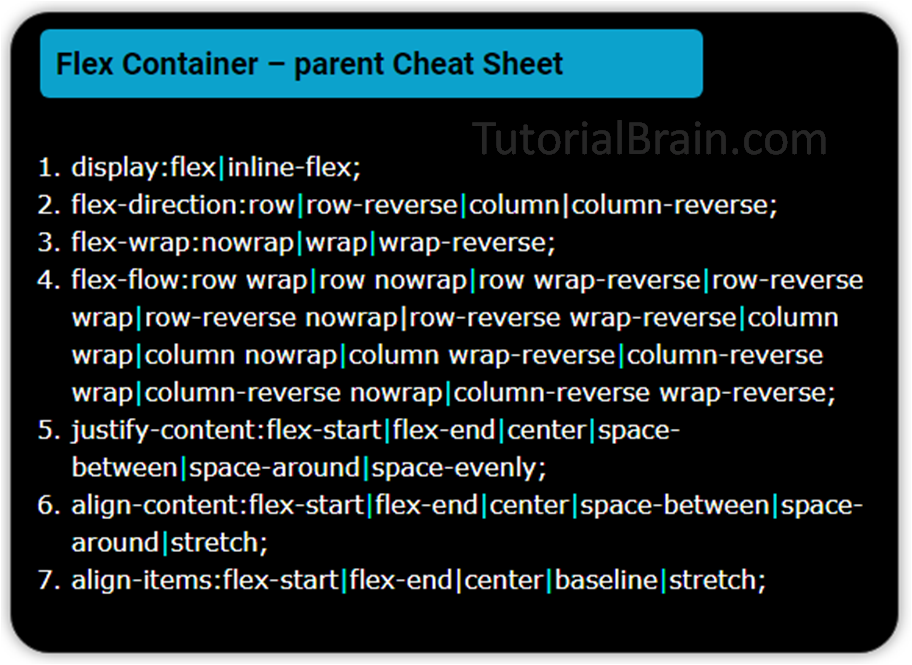

CSS flex parent cheat sheet

Flex Layout

The Flex Layout is helpful to modify the width & height of the container. This layout is used in 1 dimensional layout to change the order of the items.

Let us discuss about-

  1. Flex Container – Parent
  2. Flex Items – Children

Flex Container

The Flex Layout is helpful to modify the width & height of the container. This layout is used in 1 dimensional layout to change the order of the items.

Flex Container in CSS

Syntax to define Flex Container:
.container {
    display:flex| inline-flex;
}

Here –

  • The container is the Flex Container which is the Parent container.
  • flex is block level flex while inline-flex is inline flex.
  • You can use any of these.

Example to define a Flex

.flexbox-container {
  margin:10px;
  display: flex;
  background-color: yellow;
}

.child-items {
  padding:5px;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

Flex Direction

flex direction as row

The Flex direction defines the direction in which the flex items will arrange in the Flex Container. These can be –

  • Row – Items will arrange one after another in row s in same order as they were defined. This means that it will arrange the child elements from left to right. This is the default behavior.
  • Row-reverse – Items will arrange one after another in rows in the reverse order as they were defined. This means that it will arrange the child elements from right to left in the same way it is defined in the container.
  • Column– Items will arrange one after another in columns in same order as they were defined. This means that it will arrange the child elements from Top to Bottom.
  • Column-reverse– Items will arrange one after another columns in reverse order as they were defined. This means that it will arrange the child elements from Bottom to Top.

Syntax to define Flex Direction:
.container {
    display:flex| inline-flex;
    flex-direction: row| row-reverse| column| column-reverse;
}

Example of flex direction as row

.flexbox-container {
  margin:10px;
  display: flex;
  flex-direction: row;
  background-color: yellow;
}

.child-items {
  padding:5px;
  width:120px;
  height:30px;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

The items are arranged in rows from left to right in the same order they are defined in the div class.

You need to play with the the width, height, font-size, text, padding, borders etc to make sure that your child element fits your requirement properly.

flex direction row-reverese

Example of flex direction as row-reverse

.flexbox-container {
  margin:10px;
  display: flex;
  flex-direction: row-reverse;
  background-color: yellow;
}

.child-items {
  padding:5px;
  width:120px;
  height:30px;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

The items are arranged in rows from right to left which means it is in the reverse order  in which the items are defined in the container class.

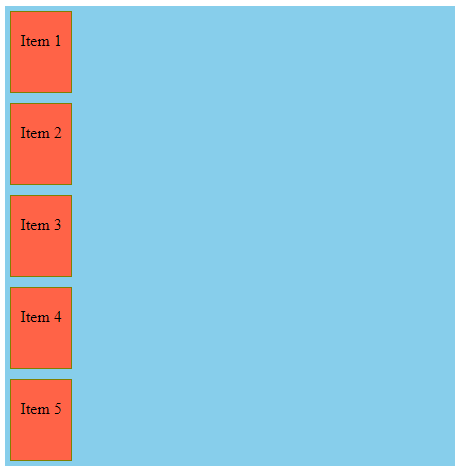

Example of flex direction as column

.flexbox-container {
  margin:10px;
  display: flex;
  flex-direction: column;
  background-color: yellow;
}

.child-items {
  padding: 25px 0;
  margin: 5px;
  width:60px;
  height:80px;
  text-align: center;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

The items are arranged in columns from Top to Bottom which means it is in the same order  in which the items are defined in the container class but it is stacked in columns.

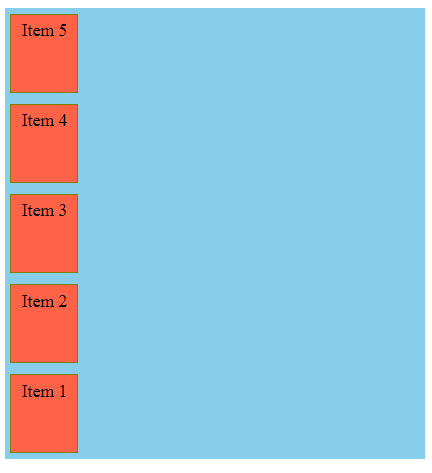

Example of flex direction as column-reverse

.flexbox-container {
  margin:10px;
  display: flex;
  flex-direction: column-reverse;
  background-color: yellow;
}

.child-items {
  padding: 25px 0;
  margin: 5px;
  width:60px;
  height:80px;
  text-align: center;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

The items are arranged in columns from Bottom to Top which means it is in the reverse order  in which the items are defined in the container class but it is stacked in columns.

Flex Wrap

The wrapping is a way to enclose a particular item. It is a way to surround an item within a boundary.

The Flex Wrap is a way to tell the browser whether to wrap the flex items into multiple lines or not to wrap the flex items at all.  Flex Wrap can have any one of these properties

  • nowrap – Items will not be wrapped into multiple lines. This is a way by which items will try to fit in 1 line itself. This is the default behavior.
  • wrap – This property directs the browser to wrap the flex items into multiple lines. The items will wrap from top to bottom.
  • wrap-reverse– Items will try to wrap in reverse direction i.e bottom to top.

Syntax to define Flex Wrap:
.container {
    display:flex| inline-flex;
    flex-wrap: wrap| wrap-reverse| nowrap;
}

nowrap is the default property of flex-wrap.

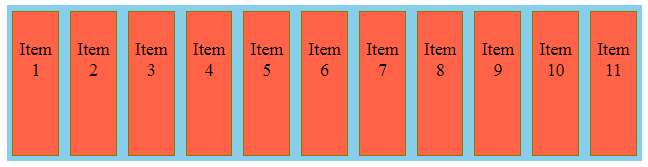

flex wrap as nowrap

Example of flex wrap as nowrap

.flexbox-container {
  margin:10px;
  display: flex;
  flex-wrap: nowrap;
  background-color: yellow;
}

.child-items {
  padding: 25px 0;
  margin: 5px;
  width:60px;
  height:80px;
  text-align: center;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

Here, if you define flex-wrap: nowrap, you will notice that all the Flex items will try to fit in 1 line itself and this is the default behavior of flex-wrap, so it is not necessary to define with flex-wrap:nowrap if you want to achieve the default behavior.

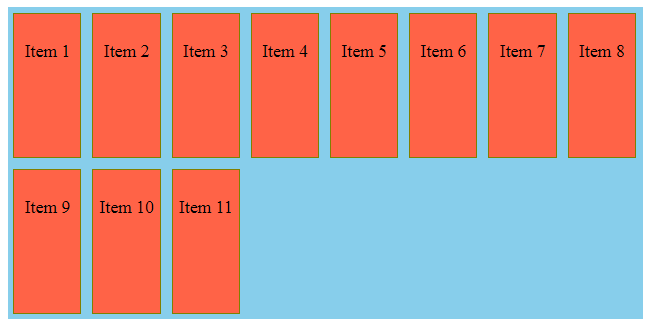

flex wrap as wrap

Example of flex container as wrap

.flexbox-container {
  margin:10px;
  display: flex;
  flex-wrap: wrap;
  background-color: yellow;
}

.child-items {
  padding: 25px 0;
  margin: 5px;
  width:60px;
  height:80px;
  text-align: center;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

Here, if you define flex-wrap: wrap, you will notice that all the Flex items will try to wrap to multiple items from top to bottom.

Example of flex wrap as wrap-reverse

.flexbox-container {
  margin:10px;
  display: flex;
  flex-wrap: wrap-reverse;
  background-color: yellow;
}

.child-items {
  padding: 25px 0;
  margin: 5px;
  width:60px;
  height:80px;
  text-align: center;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

Here, if you define flex-wrap: wrap-reverse, you will notice that all the Flex items will try to wrap to multiple items from bottom to top.

Flex Flow

If you wish to set the direction of the flex items & you want to simultaneously wrap or nowrap the flex items in the Container, then how to you decide this?

The Flex Flow is a way to tell the browser what is the direction of the flex items and whether to wrap the flex items into multiple lines or not to wrap the flex items at all.  Flex flow contains 2 values in its definition. These values are – Flex direction & Flex Wrap.

Syntax to define Flex Flow:
.container {
    display:flex| inline-flex;
    flex-flow: flex-direction   flex-wrap;
}

Where flex-direction can have the values of row, column, row-reverse or column-reverse while flex-wrap can have a value of wrap, nowrap or wrap-reverse.

The various combination of flex-flow are-

  • flex-flow: row wrap
  • flex-flow: row nowrap
  • flex-flow: row wrap-reverse
  • flex-flow: row-reverse wrap
  • flex-flow: row-reverse nowrap
  • flex-flow: row-reverse wrap-reverse
  • flex-flow: column wrap
  • flex-flow: column nowrap
  • flex-flow: column wrap-reverse
  • flex-flow: column-reverse wrap
  • flex-flow: column-reverse nowrap
  • flex-flow: column-reverse wrap-reverse

Example of flex flow

.flexbox-container8 {
  margin:10px;
  display: flex;
  flex-flow: row-reverse wrap-reverse;
  background-color: yellow;
}

.flexbox-container9 {
  margin:10px;
  display: flex;
  flex-flow: row wrap;
  background-color: pink;
}

.flexbox-container10 {
  margin:10px;
  display: flex;
  flex-flow: row nowrap;
  background-color: green;
}

.flexbox-container11 {
  margin:10px;
  display: flex;
  flex-flow: column wrap-reverse;
  background-color: aqua;
}

.flexbox-container12 {
  margin:10px;
  display: flex;
  flex-flow: column wrap;
  background-color: blue;
}
.child-items3 {
  padding: 25px 0;
  margin: 5px;
  width:60px;
  height:80px;
  text-align: center;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

CSS Justify and Content

The Justify and Content is a way to align the Flex Items & Flex Lines of the container.

There are 3 properties for Justify & Align –

  • justify-content – To align the items along the main axis
  • align-items – To  align the Flex Items vertically along the cross axis.
  • align-content – To  align the lines of the Flex Container.

Justify Content

The justify-content aligns the Flex Items along the main axis. This takes any one of these 7 values –

  1. center
  2. space-around
  3. space-between
  4. space-evenly
  5. flex-start
  6. flex-end

The Syntax of Justify Content:
justify-content: center| space-around| space-between| space-evenly|flex-start|flex-end;

Justify Content: center

The justify-content: center aligns the Flex Items to the center along the main axis.

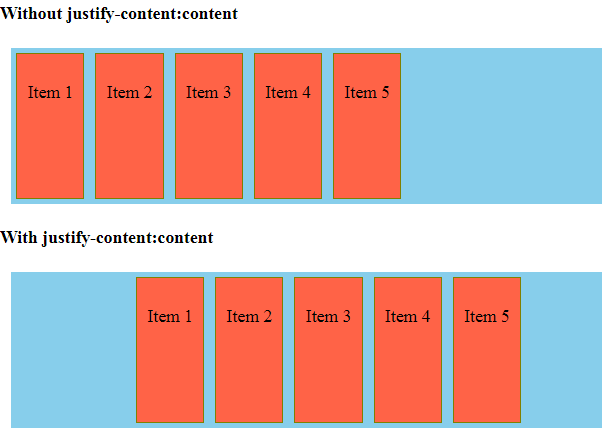

Justify Content in center

Example of Justify Content as the center

.flexbox-container7a {
  margin:10px;
  background-color: yellow;
  display: flex;
}

.flexbox-container7aa {
  margin:10px;
  background-color: yellow;
  display: flex;
  justify-content:center;
}

.child-items3a {
  padding: 25px 0;
  margin: 5px;
  width:60px;
  height:80px;
  text-align: center;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

Justify Content: space-around

The justify-content: space-around aligns the Flex Items along the main axis in such a way that  each item has equal amount of space around it. This means that it has equal spacing in the left & right around the Flex items which is half size space at both the ends. So,  the space at left & right side of each item should be equal to the half of the width of the item.

Example for Justify space around

.flexbox-container8a {
  margin:10px;
  background-color: yellow;
  display: flex;
}

.flexbox-container8aa {
  margin:10px;
  background-color: yellow;
  display: flex;
  justify-content:space-around;
}

.child-items3a {
  padding: 25px 0;
  margin: 5px;
  width:60px;
  height:80px;
  text-align: center;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

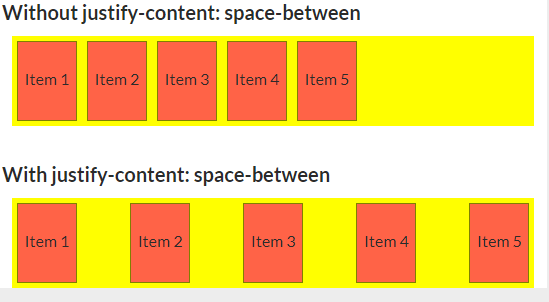

Justify Content: space-between

The justify-content: space-between aligns the Flex Items along the main axis in such a way that  each 2 successive items have equal spaces in between them. This means that there is no extra space before the 1st Flex items and after the last Flex items.

Example of justify-content: space-between

Example of Justify space between

.flexbox-container10a {
  margin:10px;
  background-color: yellow;
  display: flex;
}

.flexbox-container10aa {
  margin:10px;
  background-color: yellow;
  display: flex;
  justify-content:space-between;
}

.child-items3a {
  padding: 25px 0;
  margin: 5px;
  width:60px;
  height:80px;
  text-align: center;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

Justify Content: space-evenly

The justify-content: space-evenly aligns the Flex Items along the main axis in such a way that  each 2 successive items have equal spaces in between them. This means that there is no extra space before the 1st Flex items and after the last Flex items which is full size space at both the ends. So,  the space at left & right side of each item should be equal to the width of the item.

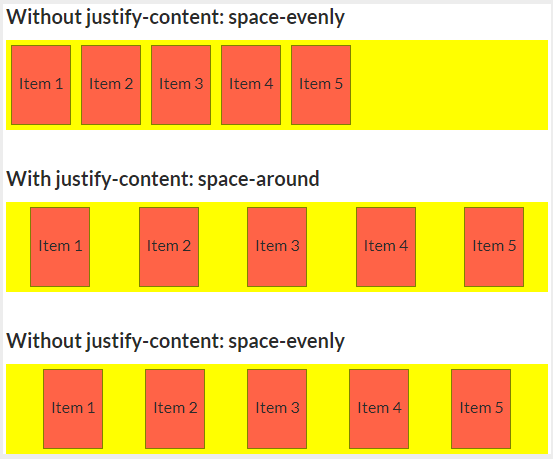

Justify-content-space: evenly in Flex

Example of Justify space evenly

.flexbox-container11a {
  background-color: yellow;
  display: flex;
}

.flexbox-container11aa {
  background-color: yellow;
  display: flex;
  justify-content:space-around;
}
.flexbox-container11ab {
  background-color: yellow;
  display: flex;
  justify-content:space-evenly;
}

.child-items3a {
  padding: 25px 0;
  margin: 5px;
  width:60px;
  height:80px;
  text-align: center;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

Justify Content: flex-start

The justify-content: flex-start aligns the Flex Items along the main axis in such a way that  the Flex item starts from the start of the flex container.

Justify-content: flex-start in FlexBox

Example for Justify flex start

.flexbox-container12a {
  margin:10px;
  background-color: yellow;
  display: flex;
}

.flexbox-container12aa {
  margin:10px;
  background-color: yellow;
  display: flex;
  justify-content:flex-start;
}

.child-items3a {
  padding: 25px 0;
  margin: 5px;
  width:60px;
  height:80px;
  text-align: center;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

Justify Content: flex-end

The justify-content: flex-end aligns the Flex Items along the main axis in such a way that  the Flex item starts from the end of the flex container.

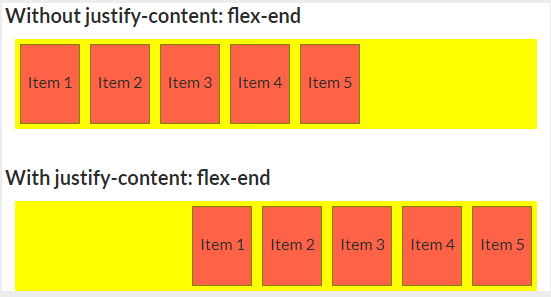

Justify-content: flex-end in FlexBox

Example for Justify flex end

.flexbox-container15a {
  margin:10px;
  background-color: yellow;
  display: flex;
}

.flexbox-container15aa {
  margin:10px;
  background-color: yellow;
  display: flex;
  justify-content:flex-end;
}

.child-items3a {
  padding: 25px 0;
  margin: 5px;
  width:60px;
  height:80px;
  text-align: center;
  border:1px solid olive;
  background-color: tomato;
}
Run the Code

align Content

The align-content aligns the lines of the Flex Container along the main axis. This takes any one of these 5 values –

  1. stretch
  2. center
  3. space-around
  4. space-between
  5. space-evenly
  6. flex-start
  7. flex-end

The Syntax of Align Content:
align-content: stretch| center| space-around| space-between| space-evenly|flex-start|flex-end;

align Content as center

The align-content: center sets the flex lines at the center of the container.

In practical scenario,Sometimes align-content: center  normally comes along with flex-wrap: wrap.

In the below example, just remove the flex-wrap: wrap and see the difference.

Example of aligning content center

.flexbox-container17aa {
  margin:10px;
  background-color: yellow;
  height: 400px;
  display: flex;
  width:300px;
  flex-wrap:wrap;
  align-content:center;
}
Run the Code

align Content as space around

The align-content: space-around aligns the space. In simple terms, it sets space around the flex lines.

Example of aligning content to space around

.flexbox-container17aa {
  margin:10px;
  background-color: yellow;
  height: 500px;
  display: flex;
  width:300px;
  flex-wrap:wrap;
  align-content:space-around;
}
Run the Code

align Content as space between

The align-content: space-between aligns the space between the flex lines only.

so, in case of align-content: space-around, it sets the space before, between and after the flex lines while in case of align-content: space-between, it sets the space between flex lines only.

Example of aligning content to space between

.flexbox-container17aa {
  margin:10px;
  background-color: yellow;
  height: 500px;
  display: flex;
  width:300px;
  flex-wrap:wrap;
  align-content:space-between;
}
Run the Code

align Content: stretch

The align-content: stretch aligns the Flex lines in the container and stretches it to fill up the space.

This is the default value so you can see that there is no difference in the output with or without align-content: stretch.

Example of aligning content stretch

.flexbox-container17aa {
  margin:10px;
  background-color: yellow;
  height: 500px;
  display: flex;
  width:300px;
  flex-wrap:wrap;
  align-content:stretch;
}
Run the Code

align Content: flex-start

The align-content: flex-start aligns the Flex lines  towards the start point of the parent element(Container).

Example of aligning content towards the flex start

.flexbox-container17aa {
  margin:10px;
  background-color: yellow;
  height: 500px;
  display: flex;
  width:300px;
  flex-wrap:wrap;
  align-content: flex-start;
}
Run the Code

align Content: flex-end

The align-content: flex-end aligns the Flex lines  towards the ending point of the parent element(Container).

Example of aligning flex end

.flexbox-container17aa {
  margin:10px;
  background-color: yellow;
  height: 500px;
  display: flex;
  width:300px;
  flex-wrap:wrap;
  align-content:flex-end;
}
Run the Code

align Content: space-evenly

The align-content: space-evenly aligns the Flex lines in the container to occupy the equal spaces along the flex lines.

Example of aligning content space evenly

.flexbox-container17aa {
  margin:10px;
  background-color: yellow;
  height: 500px;
  display: flex;
  width:300px;
  flex-wrap:wrap;
  align-content:space-evenly;
}
Run the Code
Prev
Next
Facebook Twitter Google-plus

Tutorials for all brains!
