CSS Transform

The CSS Transform is a process of transforming an element. This can alter the look of the element in 2 Dimensional form(2D Transform) or 3 Dimensional form(3D Transform).

2D Transform – If the element transforms in 2 axis i.e. X-axis and Y-axis, it is 2D transform
3D Transform – If the element transforms in 3 axis i.e. X-axis, Y-axis and Z-axis, it is 3D transform

Example for CSS transform 2D

Mouse over me to see the transform in x-axis & y-axis

Example for CSS transform 3D

Hover on this box to see the transform in X, Y & X-axis

1. CSS 2D Transforms

The 2D transforms are transformation around X-axis & Y-axis.

The 2D transforms has 6 important methods-

translate()
scale()
skewX()
skewY()
rotate()
matrix()

a) Transform 2D Translate Method

The Translate method uses translate() function to move an element from one place to another place.

The Syntax of Transform 2D Translate :
transform: translate(x-axis -length y-axis-length)

The Translate method uses translateX() function to move an element along X-axis only.

The Syntax translate along X-axis :
transform: translateX(x-axis -length);

Example:
transform:translateX(20px);

The Translate method uses translateY() function to move an element along Y-axis only.

The Syntax translate along Y-axis :
transform: translateY(y-axis -length);

Example:
transform:translateY(20px);

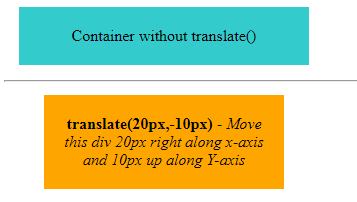

Example of Transform 2D Translate Method

.normal-area {
 width: 250px;
 padding:20px;
 margin:15px;
 background-color:#33CBCC;
 text-align:center;
}
.main-container {
 padding:15px 0 0 20px;
}
.translate-main {
 width: 200px;
 padding:20px;
 text-align:center;
}
.pos-x-neg-y {
 background-color: orange;
 transform: translate(20px,-10px);
 -ms-transform: translate(20px,-10px); /*IE*/
 -webkit-transform: translate(20px,-10px); /*Safari and Chrome*/
 -moz-transform: translate(20px,-10px); /*mozilla*/
}
.neg-x-neg-y {
 background-color: pink;
 transform: translate(-15px,-5px);
 -ms-transform: translate(-15px,-5px); /*IE*/
 -webkit-transform: translate(-15px,-5px); /*Safari and Chrome*/
 -moz-transform: translate(-15px,-5px); /*mozilla*/
}
.neg-x-pos-y {
 background-color: yellow;
 transform: translate(-8px,6px);
 -ms-transform: translate(-8px,6px); /*IE*/
 -webkit-transform: translate(-8px,6px); /*Safari and Chrome*/
 -moz-transform: translate(-8px,6px); /*mozilla*/
}
.pos-x-pos-y {
 background-color: #00BB27;
 transform: translate(25px,30px);
 -ms-transform: translate(25px,30px); /*IE*/
 -webkit-transform: translate(25px,30px); /*Safari and Chrome*/
 -moz-transform: translate(25px,30px); /*mozilla*/
}

You can also use the translate() property on CSS Selectors, Pseudo classes, Pseudo elements, etc.

In the below example, on Mouse hover the image will move from one position to another position.

Example of 2D Translate on Hover

img {
 width: 250px;
 height: 150px;
 transition: transform 1s;
}
img:hover {
  transform: translate(50px,60px);
  -webkit-transform: translate(50px,60px);
  -moz-transform: translate(50px,60px);
  -ms-transform: translate(50px,60px);
}

b. Transform 2D Scale Method

The method scale() scales up an element or scales down an element (a number of times) by either increasing or decreasing the width or height or both.

The Syntax of Scale width & height:
transform: scale(n-times-x m-times-y)

The method scaleX() scales up or down around x axis.

The Syntax Scale X:
transform: scaleX(n-times-x);

Example:
transform: scaleX(2); /* Scales up the width & height 2 times along x axis */

The method scaleY() scales up or down around y axis.

The Syntax Scale Y:

transform: scaleY(m-times-y);

Example:
transform:scaleY(3); /* Scales up the width & height 3 times along y axis */

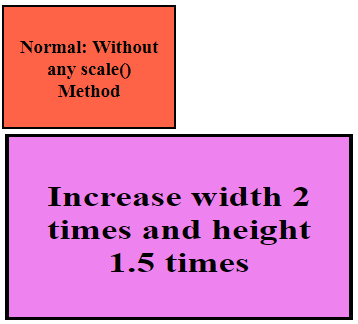

Example of Transform 2D Scale Method

.normal-val, .with-scale {
   width: 150px;
   height: 100px;
   padding:10px;
   margin-left:100px;
   background-color: tomato;
   text-align:center;
   border:2px solid black;
}
.with-scale {
  transition: transform 0.5s;
  background-color: violet;
  margin-left:90px;
}
.with-scale:hover {
  transform: scale(2,1.5);
  background-color: violet;
  margin-left:90px;
  -ms-transform: scale(2,1.5); /*IE*/
  -webkit-transform: scale(2,1.5);  /*Safari and Chrome*/
}

c) Transform 2D SkewX Method

The skewX() method skews an element along the X-axis. This means, it makes the element to slant at a particular angle along the X-axis.

The Syntax of Transform 2D skewX Method:
skewX(ndeg);

Here,’n’ can be any valid value for the degree & ‘n’ can be positive or negative.

Example:
skewX(45deg);
skewX(-30deg);

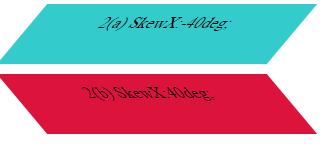

Example of Transform 2D skewX Method

.normalval {
 width: 300px;
 margin:10px;
 padding:20px;
 background-color: gold;
 text-align:center;
}

.skewx1 {
 width: 250px;
 height:40px;
 margin:10px;
 padding:10px;
 margin-left:15px;
 background-color: #33CBCC;
 text-align:center;
 transform: skewX(-40deg);
 -ms-transform: skewX(-40deg);
 -webkit-transform: skewX(-40deg);
}
.skewx2 {
 width: 250px;
 height:40px;
 padding:10px;
 margin-left:15px;
 background-color: crimson;
 text-align:center;
 transform: skewX(40deg);
 -ms-transform: skewX(40deg);
 -webkit-transform: skewX(40deg);
}

d) CSS Transform 2D Skew Y Method

The skewY() method skews an element along the Y-axis. This means, it makes the element to slant at a particular angle along the Y-axis.

The Syntax of Transform 2D skewY Method:
skewY(mdeg);

Here,’m’ can be any valid value for the degree & ‘m’ can be positive or negative.

Example:
skewY(45deg);
skewY(-30deg);

Example of Transform 2D skewY Method

.normalval {
 width: 200px;
 padding:20px;
 background-color: gold;
 text-align:center;
}

.skewy1 {
 width: 200px;
 padding:20px;
 background-color: #33CBCC;
 transform: skewY(-10deg);
 text-align:center;
 -ms-transform: skewY(-10deg); /*IE*/
 -webkit-transform: skewY(-10deg); /*Safari and Chrome*/
}

.skewy2 {
 width: 200px;
 padding:20px ;
 background-color: crimson;
 text-align:center;
 transform: skewY(10deg);
 -ms-transform: skewY(10deg); /*IE*/
 -webkit-transform: skewY(10deg); /*Safari and Chrome*/
}

Transform Skew

Let us use a shorthand skew property which combines skewX(mdeg) & skewY(ndeg).

The Syntax of Transform Skew:
skew(skewX(mdeg),skewY(ndeg));

Example of Transform Skew

.skew-one-side, .skew-both-sides {
 width:150px;
 padding:20px;
 background-color: #33CBCC;
 text-align:center;
 margin-left:50px;
 border:4px solid black;
 transition:transform 1s linear;
}

.skew-one-side:hover {
 transform:skew(-50deg, 0deg);
 -ms-transform: skew(-50deg, 0deg); /*IE*/
 -webkit-transform:skew(-50deg, 0deg); /*Safari and Chrome*/
}
.skew-both-sides:hover {
 transform:skew(-50deg, -50deg);
 -ms-transform: skew(-50deg, 50deg); /*IE*/
 -webkit-transform:skew(-50deg, 50deg); /*Safari and Chrome*/
}

e) Transform 2D Rotate Method

Rotating an element gives a nice transformation to the element. If you want to rotate the element in 2-dimensions then you can use the rotate() method.

You can set the amount of rotation using an angle.

The Syntax of Transform 2D Rotate Method:
rotate(mdeg);

Here,’m’ can be any valid value for the degree & ‘m’ can be positive or negative.

Example:
rotate(30deg);
rotate(-10deg);

Example of a simple Transform 2D Rotate Method

.normalval {
 width: 200px;
 padding:20px;
 background-color: tomato;
 text-align:center;
}
.rotateval {
 width: 200px;
 padding:20px;
 background-color: #33CBCC;
 text-align:center;
 transform: rotate(190deg);
 -ms-transform: rotate(190deg); /*IE*/
 -webkit-transform: rotate(190deg);  /*Safari and Chrome*/
}

Let us take another example of the rotate() method which transforms an element when the user takes some action like hover the mouse.

Example of Transform Rotate on hover

 .tranform-rotate{
  width:250px;
  height:50px;
  padding:30px;
  margin-left:50px;
  background-color: dodgerblue;
  border:2px solid black;
  transition:transform 3s linear;
 }

 .tranform-rotate:hover{
  transform: rotate(360deg);
 }

Warning/Danger/Info/Success 360deg is equal to 1turn so instead of using -

transform:rotate(360deg);

You can also use -

transform:rotate(1turn);

Similarly, 0.5turn is equal to 180deg.
Also,if you use negative value of turn, the element will rotate anticlockwise i.e. -0.5turn is equal to -180deg.

360deg is also equal to 400grad so the above code is same as -

transform:rotate(400grad);

f) Transform 2D Matrix Method

The matrix() method is a combination of scaleX(), skewY(), skewX(), scaleY(), translateX() & translateY().

The Syntax of Transform 2D Matrix Method:
matrix(scaleX(), skewY(), skewX(), scaleY(), translateX(), translateY());

so, in simple terms, the syntax is like –

matrix(a,b,c,d,e,f);

where a,d helps in scaling up or down the elements. It is like scale(a,d).

Similarly, b,c skew the element in X and Y axis respectively. It is like skew(b,c).

And e,f helps to translate the element(move the element) from one position to another. It is like translate(e,f).

Warning/Danger/Info/Success scaleX(),skewX(), skewY() & scaleY() are Linear Transforms and are numbers with or without a decimal value so these changes the shape of the elements while translateX() & translateY() moves the elements(changes the position).
The skewX() & skewY() in this case are NOT in degrees but in numbers.

Suppose we have:

scale(3) – It means the element should scale 3 times in X and Y axis. It is same as scale(3,3)
skew(0.3) – Similarly, it is same as skew(0.3,0.3)
translate(2) – Similarly, it is same as translate(2,2)

Now, the above values can be simply represented using a matrix() function like below –
matrix(3,0.3,0.3,3,2,2).

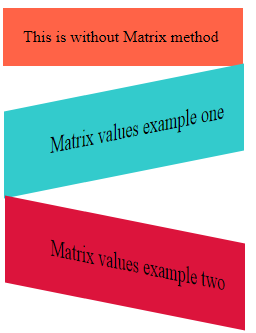

Example of Transform 2D Matrix Method

.without-matrix {
 width: 200px;
 padding:20px;
 background-color: tomato;
}
.matrix1 {
 width: 200px;
 padding:20px;
 background-color: #33CBCC;
 text-align:right;
 transform: matrix(1, -0.2, 0, 1.5, 1, 0);
 -ms-transform: matrix(1, -0.2, 0, 1.5, 1, 0); /*IE*/
 -webkit-transform: matrix(1, -0.2, 0, 1.5, 1, 0); /*Safari and Chrome*/
}

.matrix2 {
 width: 200px;
 padding:20px ;
 background-color: crimson;
 text-align:right;
 transform: matrix(1, 0.2, 0, 1.5, 2, 20);
 -ms-transform: matrix(1, 0.2, 0, 1.5, 2, 20); /*IE*/
 -webkit-transform: matrix(1, 0.2, 0, 1.5, 2, 20); /*Safari and Chrome*/
}

CSS Transform Origin

When you use the transform property, you can transform an element.

Now, if you want to change the origin position of the transformed elements, then you can use transform-origin property.

So, essentially, it is the origin point that transforms takes as a point of reference and the transform property will work with respect to this point.

Syntax of 2D Transform origin - Type 1

->If it has 1 value like this –
transform-origin: a;

Here, a can take any one of these values such as –

x%(like 20%)
length(like 20px)
left
right
top
bottom
center

Example:
transform-origin: 30%;
transform-origin: 25px;
transform-origin: left;
transform-origin: right;
transform-origin: top;
transform-origin: bottom;
transform-origin: center;

Syntax of 2D Transform origin - Type 2

->If it has 2 value like this –
transform-origin: x-pos y-pos;

Here, x-pos can take any one of these values such as –

x%(like 20%)
length(like 20px)
left
center
right

Here, y-pos can take any one of these values such as –

x%(like 40%)
length(like 30px)
top
bottom
center

The default value is transform-origin: 50% 50%;

Example:
transform-origin: 30% 40%;
transform-origin: 25px 50px ;
transform-origin: left top;
transform-origin: right bottom;
transform-origin: center top;

The Syntax of 3D Transform origin:

transform-origin: x y z;

Here, x can take any one of these values such as –

n%(like 20%) where n can be a number
length(like 20px)
left
center
right

Here, y can take any one of these values such as –

m%(like 40%) where m can be a number
length(like 30px)
top
bottom
center

while, z can have a valid value of length like 2em, 3px etc.

We will learn about 3D transform as you move further in this page.

Example of Transform Origin

.mainval{
 border:2px dashed black;
}

.tranform-origin1{
 width:150px;
 height:50px;
 padding:30px;
 margin-left:50px;
 background-color: gold;
 border:2px solid black;
 margin-bottom:5px;
}
.tranform-origin1:hover{
 transform: rotate(40deg);
 transform-origin: bottom top;
}

.tranform-origin2{
 position: relative;
 width:150px;
 height:50px;
 margin-left:50px;
 padding:30px;
 background-color: dodgerblue;
 border:2px solid black;
 margin-bottom:5px;
}

.tranform-origin2:hover{
 transform: rotate(20deg);
 transform-origin: 60px 30px;
}

.tranform-origin3{
 position: relative;
 width:150px;
 height:50px;
 margin-left:50px;
 padding:30px;
 background-color: hotpink;
 border:2px solid black;
}

.tranform-origin3:hover{
 transform: rotate(90deg);
 transform-origin: center 50px;
}

Multiple Transform

We can combine the multiple transform properties as below-

Example of Multiple Transform

.main-div{
 width:200px;
 height:200px;
 padding:30px;
 border-radius:50%;
 margin-left:100px;
 border:2px dotted black;
 text-align:center;
}

.main-div .multiple-transform{
 width:200px;
 height:200px;
 border-radius:50%;
 background:#117DA9;
 transition:transform 3s linear;
}

.main-div .multiple-transform:hover{
 transform: rotate(360deg) scale(1.5) skewY(-20deg);
}

By now, we know what is 2D transform and what are its properties.

Let us understand what is 3D transform and what are its properties.

2. 3D Transform

3D transform is the transformation of the element on X-axis, Y-axis & Z-axis.

The 3D transforms has these important methods-

rotateX()
rotateY()
rotateZ()
rotate3d()
perspective()
translateX(x)
translateY(y)
translateZ(z)
translate3d(x,y,z)
scaleX(x)
scaleY(y)
scaleZ(z)
scale3d(x,y,z)

Warning/Danger/Info/Success

It is recommended to use perspective() method when you are using the translateZ(z).

Positive value of translateZ(z) brings the element closer to the user while Negative value of translateZ(z) moves the element away from the user.

Positive value of scaleZ(z) scales the element closer to the user while Negative value of scaleZ(z) scales the element away from the user.

1. Transform 3D Rotate X Method

The rotateX() method helps to rotate an element around the X-axis.

The Syntax of 3D Rotate X Method:
rotateX(mdeg);

Example:
rotateX(40deg);

Warning/Danger/Info/Success Some of the older versions does not support rotateX() method so you should be careful while using it.

Example of Transform 3D Rotate X Method

.rotate-x1{
 width: 200px;
 padding:20px;
 background-color: #33CBCC;
 text-align:center;
 transform: rotateX(160deg);
 -webkit-transform: rotateX(160deg); /*Safari and Chrome*/
}
.rotate-x2{
 width: 200px;
 padding:20px ;
 background-color: crimson;
 text-align:center;
 transform: rotateX(360deg);
 -webkit-transform: rotateX(360deg); /*Safari and Chrome*/
 }

2. Transform 3D Rotate Y Method

The rotateY() method helps to rotate an element around the Y-axis.

The Syntax of 3D Rotate Y Method:
rotateY(ndeg);

Example:
rotateY(40deg);

Warning/Danger/Info/Success Some of the older versions does not support rotateY() method so you should be careful while using it.

Example of Transform 3D Rotate Y Method

.rotate-y1{
 width: 200px;
 padding:20px;
 background-color: #33CBCC;
 text-align:center;
 transform: rotateY(160deg);
 -webkit-transform: rotateY(160deg); /*Safari and Chrome*/
}

.rotate-y2{
 width: 200px;
 padding:20px ;
 background-color: crimson;
 text-align:center;
 transform: rotateY(360deg);
 -webkit-transform: rotateY(360deg); /*Safari and Chrome*/
}

Transform Flip

Using the rotateY() method and some other properties, we can create a Flip element. Lets jump to the example and see the output.

Example of Transform Flip

section{
 width: 200px;
 height: 200px;
 transform-style: preserve-3d;
 transition: transform 1.5s;
}

section:hover {
 -webkit-transform: rotateY(-180deg);
 transform: rotateY(-180deg);
}
.front {
 position: absolute;
 -webkit-backface-visibility: hidden;
 backface-visibility: hidden;
}
.back {
 -webkit-transform: rotateY(180deg);
 transform: rotateY(180deg);
}

3. Transform 3D Rotate Z Method

The rotateZ() method helps to rotate an element around the Z-axis.

The Syntax of 3D Rotate Z Method:
rotateZ(xdeg);

Example:
rotateZ(40deg);

Warning/Danger/Info/Success Some of the older versions do not support rotateZ() method so you should be careful while using it.

Example of Transform 3D Rotate Z Method

.rotate-z1{
 width: 200px;
 padding:20px;
 background-color: #33CBCC;
 text-align:center;
 transform: rotateZ(160deg);
 -webkit-transform: rotateZ(160deg); /*Safari and Chrome*/
}

.rotate-z2{
 width: 200px;
 padding:20px ;
 background-color: crimson;
 text-align:center;
 transform: rotateZ(360deg);
 -webkit-transform: rotateZ(360deg); /*Safari and Chrome*/
}

4. Transform 3D Rotate

The rotate3d() method helps to rotate an element around the all the 3 dimension i.e. X-axis, Y-axis & Z-axis.

The Syntax of CSS Transform 3D Rotate:
rotate3d(x,y,z,ndeg);

Where x – X axis, y – Y axis, z – Z axis & ndeg is the amount of degree(angle like 40deg or -30deg)

Warning/Danger/Info/Success When the 'ndeg' is positive, the element tends to rotate in Clockwise direction while the 'ndeg' is negative, the element tends to rotate in Anticlockwise direction.

Example of CSS Transform 3D Rotate

.mainval{
 border:2px dashed black;
 width:300px;
}
.rotate-one{
 position: relative;
 width:150px;
 height:150px;
 margin-left:50px;
 background-color: lightgreen;
 border:5px dotted black;
 margin-bottom:5px;
 border-radius:10%;
 transition:transform 3s;
}
.rotate-one:hover{
  transform: rotate3d(2, 2, 2, -90deg);
 -webkit-transform: rotate3d(2, 2, 2, -90deg); /*Safari and Chrome*/
}

.rotate-two{
 position: relative;
 width:150px;
 height:150px;
 margin-left:50px;
 background-color: lightblue;
 border:5px dotted black;
 margin-bottom:5px;
 border-radius:10%;
 transition:transform 3s;
}

.rotate-two:hover{
 transform: rotate3d(2, -1, -1, 360deg);
 -webkit-transform: rotate3d(2, -1, -1, 360deg); /*Safari and Chrome*/

Let us take another example of rotate3d(). The below example will be like a 3D animation using 3D transform-

Example of Transform 3D Animation

.three-d-animation{
 width: 100px;
 height:100px;
 margin-left;
 border:6px dotted black;
 padding:5px;
 background-color: #33CBCC;
 text-align:center;
 border-radius:50%;
 transition:transform 3s linear;
}

.three-d-animation:hover{
 transform: rotate3d(2, 2, 2, 260deg);
 -webkit-transform: rotate3d(2, 2, 2, 260deg); /*Safari and Chrome*/
}

5. Transform Perspective

When you search the meaning of Perspective in Google, it reads –

HTML Quotation "The art of representing three-dimensional objects on a two-dimensional surface so as to give the right impression of their height, width, depth, and position in relation to each other."

It controls, how distant an object is away from the user so it creates a perspective about an object to the user.

In simple terms, you can think it as a distance between the computer screen and your eyes.

The Syntax of Transform Perspective:
perspective: valid-unit| inherit| none;

The default value is –
perspective: none;

Example of Transform Perspective

.div1 .main-val{
 width:200px;
 height:200px;
 padding:30px;
 margin-left:50px;
 border:2px dotted black;
 text-align:center;
}

.div1 .perspective-val{
 width:200px;
 height:200px;
 border:12px;
 border-style:solid;
 border-color: coral purple coral purple;
 -webkit-transform: perspective(400px) rotateY(45deg);  /*Safari and Chrome*/
 transform: perspective(400px) rotateY(40deg);
}

translateX, translateY and translateZ

translateX and translateY in 2d and 3d are similar.

translateZ will move the element along the Z(axis). Always remember to set the value of perspective while using the translateZ method.

In the below example, if the perspective is 800px then the element will translate 300px along the Z axis towards the user. So, if you reduce the value of perspective and increase the value of translateZ, then the image will appear much close to your eyes on hover.

You can change the values of the perspective and translateZ and evaluate the result yourself.

Example of translateZ

img {
   width: 30%;
   display: block;
   margin:150px auto auto auto;
   transition: transform 0.4s;
}

img:hover {
	transform: perspective(800px) translateZ(300px);
}

Transform 3D Cube

A 3D cube looks excellent in any device. We are going to create it using 2D transform, 3D transform and some other properties of CSS animation.

Example of Transform 3D Cube

.cube{
 margin: 0 auto;
 width: 200px;
 transform-style: preserve-3d;
 animation: spin 6s infinite linear;
}

p{
 position:absolute;
 color:navy;
 width:200px;
 height:200px;
 font-size:2em;
 text-align:center;
 line-height:200px;
 background: linear-gradient(to top left, black, white, black);
}

p.front-side{
 transform: translateZ(100px);
}

p.back-side{
 transform: translateZ(-100px) rotateY(180deg);
}

p.bottom-side{
 transform:rotateY(-270deg) translateX(100px);
 transform-origin: top right;
}

p.left-side{
 transform:rotateY(270deg) translateX(-100px);
 transform-origin: center left;
}

p.right-side{
 transform:rotateX(-90deg) translateY(-100px);
 transform-origin: top center;
}

p.top-side{
 transform:rotateX(90deg) translateY(100px);
 transform-origin: bottom center;
}

@-webkit-keyframes spin {
 from { transform: rotateY(0); }
 to   { transform: rotateY(360deg); }
}
